Sulfur

This article is about the chemical element.

16 phosphorus ← sulfur → chlorine O ↑ S ↓ Se periodic table
General
Name, Symbol, Number	sulfur, S, 16
Chemical series	nonmetals
Group, Period, Block	16, 3, p
Appearance	lemon yellow
Atomic mass	32.065(5) g/mol
Electron configuration	[Ne] 3s2 3p4
Electrons per shell	2, 8, 6
Physical properties
Phase	solid
Density (near r.t.)	(alpha) 2.07 g/cm³
Density (near r.t.)	(beta) 1.96 g/cm³
Density (near r.t.)	(gamma) 1.92 g/cm³
Liquid density at m.p.	1.819 g/cm³
Melting point	388.36 K (115.21 °C, 239.38 °F)
Boiling point	717.8 K (444.6 °C, 832.3 °F)
Critical point	1314 K, 20.7 MPa
Heat of fusion	(mono) 1.727 kJ/mol
Heat of vaporization	(mono) 45 kJ/mol
Heat capacity	(25 °C) 22.75 J/(mol·K)
Vapor pressure P/Pa 1 10 100 1 k 10 k 100 k at T/K 375 408 449 508 591 717
Atomic properties
Crystal structure	orthorhombic
Oxidation states	−1, ±2, 4, 6 (strongly acidic oxide)
Electronegativity	2.58 (Pauling scale)
Ionization energies (more)	1st: 999.6 kJ/mol
	2nd: 2252 kJ/mol
	3rd: 3357 kJ/mol
Atomic radius	100 pm
Atomic radius (calc.)	88 pm
Covalent radius	102 pm
Van der Waals radius	180 pm
Miscellaneous
Magnetic ordering	no data
Electrical resistivity	(20 °C) (amorphous) 2×1015 Ω·m
Thermal conductivity	(300 K) (amorphous) 0.205 W/(m·K)
Bulk modulus	7.7 GPa
Mohs hardness	2.0
CAS registry number	7704-34-9
Notable isotopes
Main article: Isotopes of sulfur iso NA half-life DM DE (MeV) DP 32S 95.02% S is stable with 16 neutrons 33S 0.75% S is stable with 17 neutrons 34S 4.21% S is stable with 18 neutrons 35S syn 87.32 d β- 0.167 35Cl 36S 0.02% S is stable with 20 neutrons

Sulfur or sulphur (see spelling below) (chemical symbol S, atomic number 16) is a yellow crystalline solid at ordinary temperatures and pressures. It is tasteless and odorless and is classified as a nonmetal. It forms stable compounds with all elements except the noble gases. Abundant in nature, it can be found as the pure element or as sulfide and sulfate minerals. Many of the unpleasant odors of organic matter, including garlic odor and "skunk stink," are produced by sulfur-containing compounds.

This element is essential for living organisms, particularly as part of the structures of certain amino acids and proteins. Moreover, sulfur and its compounds are important for a host of practical applications. Its derivative, sulfuric acid, ranks among the most important industrial raw materials. In addition, sulfur is used in producing batteries, detergents, fungicides, and fertilizers, and for the vulcanization of rubber. As a flammable material, sulfur is used in making matches, gunpowder, and fireworks.

Several of the compounds of sulfur should be handled with care. For instance, hydrogen sulfide is quite toxic, and both sulfurous acid and sulfuric acid can harm biological tissue.

Spelling

The element has traditionally been spelled sulphur in several countries, such as the United Kingdom, Ireland, Hong Kong, and India, but it is spelled sulfur in the United States. Both spellings are used in Australia, Canada, and New Zealand. The International Union of Pure and Applied Chemists (IUPAC) adopted the spelling "sulfur" in 1990, as did the Royal Society of Chemistry Nomenclature Committee in 1992.

Occurrence

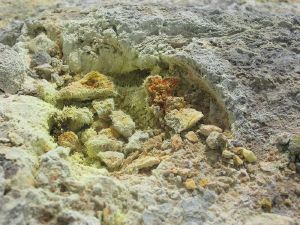

Sulfur crystalites at Waiotapu hot springs, New Zealand.

Elemental sulfur can be found near hot springs and volcanic regions in many parts of the world, especially along the Pacific "Ring of Fire"—a zone of frequent earthquakes and volcanic eruptions encircling the Pacific Ocean. Such volcanic deposits are currently exploited in Indonesia, Chile, and Japan.

Significant deposits of elemental sulfur also exist in salt domes along the coast of the Gulf of Mexico and in evaporites in Eastern Europe and western Asia. (Evaporites are mineral sediments that are left behind after evaporation of the water in shich they were once dissolved) The sulfur in these deposits is believed to come from the action of anaerobic bacteria on sulfate minerals, especially gypsum. Such deposits form the basis for commercial production in the United States, Poland, Russia, Turkmenistan, and Ukraine.

Sulfur extracted from oil, gas, and the Athabasca Oil Sands has led to a glut on the market, and huge stockpiles of sulfur can be seen throughout Alberta.

Common sulfur compounds in nature include:

• metal sulfides, such as pyrite (iron sulfide), cinnabar (mercury sulfide), galena (lead sulfide), sphalerite (zinc sulfide), and stibnite (antimony sulfide);
• metal sulfates, such as gypsum (calcium sulfate), alunite (potassium aluminum sulfate), and barite (barium sulfate).

Sulfur is present in many types of meteorites. In addition, the distinctive colors of Jupiter's volcanic moon Io are thought to correspond to various forms of gaseous, molten, and solid sulfur. There is also a dark area near the lunar crater Aristarchus that may be a sulfur deposit.

History

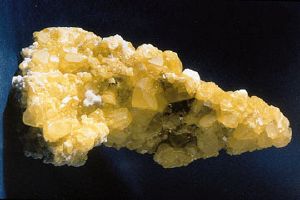

Sulfur crystal

Sulfur (Sanskrit, sulvere; Latin sulpur) was known in ancient times, and is referred to in several books of the Bible, including the book of Genesis. It has been suggested that the word may have been derived from the Arabic sufra, meaning yellow, which is the color of the naturally occurring form of the element.

In the eighth century B.C.E., Homer mentioned "pest-averting sulfur"; and in 424 B.C.E., the tribe of Boeotia destroyed the walls of a city by burning a mixture of coal, sulfur, and tar under them. Sometime in the twelfth century, the Chinese invented gunpowder, which is a mixture of potassium nitrate (KNO₃), carbon, and sulfur. Early alchemists gave sulfur its own alchemical symbol—a triangle at the top of a cross. In the late 1770s, Antoine Lavoisier helped convince the scientific community that sulfur was an element, not a compound.

Furniture makers of the late eighteenth century used molten sulfur to produce decorative inlays in their craft. That craft, however, was soon abandoned because of the sulfur dioxide produced during the process of melting sulfur.

In 1867, sulfur was discovered in underground deposits in Louisiana and Texas. The overlying layer of earth was quicksand, prohibiting ordinary mining operations. Therefore, it was removed by the Frasch process—the underground sulfur was melted by pumping superheated steam through pipes set in the ground, and the molten sulfur was pumped out.

"Brimstone" in religious thought

In the Bible, sulfur is referred to as "brimstone." The book of Genesis, in particular, mentions that God punished evildoers in Sodom and Gomorrah by raining "brimstone and fire" upon them. Accordingly, a "fire and brimstone" sermon is one in which listeners are reminded of the fate of eternal damnation that awaits the unrepentant sinner. Also, hell is implied as having the smell of sulfur, although, as mentioned above, sulfur is odorless. The "smell of sulfur" usually refers to the odor of sulfur compounds such as hydrogen sulfide, which has the smell of rotten eggs.

Notable characteristics

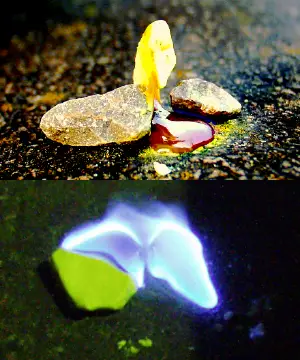

A piece of sulfur melts to a blood-red liquid. When burned, it emits a blue flame.

In the periodic table, sulfur is located in group 16 (formerly group 6A), between oxygen and selenium. It is thus a member of the oxygen family of elements, also called the chalcogens. In addition, it lies between phosphorus and chlorine in period 3.

Elemental sulfur is odorless, as noted above. The common belief that it smells like rotten eggs is actually an association with the smell of hydrogen sulfide (H₂S) gas. When it burns, sulfur produces a blue flame and emits sulfur dioxide—a gas that is notable for its peculiar, suffocating odor, like that of burnt matches. Sulfur is insoluble in water but soluble in carbon disulfide and, to a lesser extent, in other organic solvents such as benzene.

Sulfur can combine with other elements in different proportions, and it is therefore described as being multivalent. Common oxidation states of sulfur include −2, +2, +4 and +6. In combination with metals and oxygen, it forms sulfides (such as sodium sulfide, Na₂S), sulfates (such as copper sulfate, CuSO₄), and sulfites (such as sodium sulfite, Na₂SO₃). It also forms hydrogen sulfide (H₂S)—a colorless, flammable, toxic gas that is responsible for the odor of rotten eggs—and carbon disulfide (CS₂), a colorless liquid with a pleasant smell.

In the solid state, sulfur ordinarily exists as cyclic, crown-shaped S₈ molecules. In addition, it has many allotropes. Removing one atom from the crown gives S₇, which is responsible for sulfur's distinctive yellow color. Many other rings have been prepared, including S₁₂ and S₁₈. By contrast, its lighter neighbor, oxygen, exists in only two significant allotropic states: O₂ and O₃. Selenium, the heavier analog of sulfur, can form rings but is more often found as a polymer chain. Depending on the specific conditions, the sulfur allotropes form several distinct crystal structures, of which rhombic and monoclinic S₈ are best known.

The structure of the S₈ molecule. Two of the S atoms in this structure lie in the back and cannot be seen.

The viscosity of molten sulfur, unlike that of most other liquids, increases with temperature because of the formation of polymer chains. Once a specific temperature is reached, the viscosity starts dropping because there is enough energy to break the chains.

Amorphous or "plastic" sulfur can be produced through the rapid cooling of molten sulfur. Studies using a technique known as X-ray crystallography show that the amorphous form may have a helical structure, with eight atoms per turn. At room temperature, this form is metastable and gradually reverts back to the crystalline state. This process happens within a matter of hours to days but can be speeded up by using a catalyst.

Isotopes

Sulfur has 18 isotopes, of which four are stable: ³²S (95.02 percent), ³³S (0.75 percent), ³⁴S (4.21 percent), and ³⁶S (0.02 percent). The radioactive isotope ³⁵S is formed from cosmic ray spallation of ⁴⁰Ar in the atmosphere. It has a half-life of 87 days. The other radioactive isotopes of sulfur are all short lived.

Sulfur with a distinctive isotopic composition has been used to identify pollution sources, and enriched sulfur has been added as a tracer in hydrologic studies. Differences in the natural abundances can also be used in systems where there is sufficient variation in the ³⁴S of ecosystem components.

Applications

Sulfur powder.

Sulfur and its compounds have many uses. Its main derivative is sulfuric acid (H₂SO₄), through which sulfur ranks as one of the most important industrial raw materials. The consumption of sulfuric acid has been regarded as one of the best indices of a nation's industrial development. More sulfuric acid is produced in the United States every year than any other industrial chemical.

Sulfur is also used in batteries, detergents, the vulcanization of rubber, fungicides, and the manufacture of phosphate fertilizers. Sulfites are used to bleach paper and as preservatives in wine and dried fruit. Given its flammable nature, sulfur also finds use in matches, gunpowder, and fireworks. Sodium and ammonium thiosulfates are used as photographic fixing agents. Magnesium sulfate, better known as Epsom salts, can be used as a laxative, a bath additive, an exfoliant, or a magnesium supplement for plants. Sulfur is used as the light-generating medium in the rare lighting fixtures known as sulfur lamps.

Biological role

The amino acids cysteine and methionine contain sulfur, as do all peptides and proteins that contain these amino acids. In protein assembly and structure, bonds between sulfur atoms—known as "disulfide bonds"—play an important role. Thus, sulfur is a necessary component of all living cells.

Some forms of bacteria use hydrogen sulfide (H₂S) in place of water as the electron donor in a primitive, photosynthesis-like process. Sulfur is absorbed by plants via the roots from soil as the sulfate ion and reduced to sulfide before being incorporated into cysteine and other organic sulfur compounds—a process called sulfur assimilation. Inorganic sulfur forms a part of iron-sulfur clusters, and sulfur is the bridging ligand in the Cu_A site of the enzyme cytochrome c oxidase. Sulfur is also an important component of coenzyme A. The amino acids homocysteine and taurine also contain sulfur, but they are not part of the primary structure of proteins.

Environmental impact

The burning of coal and petroleum by industry and power plants liberates huge amounts of sulfur dioxide (SO₂), which reacts with atmospheric water and oxygen to produce sulfuric acid. This acid is a component of acid rain, which causes soil and freshwater bodies to become acidic, thereby harming the natural environment. It also causes substantial damage to statues and architecture. Fuel standards increasingly require sulfur to be extracted from fossil fuels, to prevent the formation of acid rain. This extracted sulfur is then refined and represents a large portion of sulfur production.

Compounds

Inorganic sulfur compounds:

• Hydrogen sulfide has the characteristic smell of rotten eggs. When dissolved in water, it is acidic and will react with metals to form metal sulfides.
• Sulfides are a complex family of compounds usually composed of metal cations bound to S²⁻ anions. Natural metal sulfides are common. Iron sulfide, for instance, occurs as the mineral called pyrite—the so-called fool's gold. Interestingly, pyrite can show semiconductor properties.[1] Galena, a naturally occurring lead sulfide, was the first semiconductor discovered, and was used as a signal rectifier in the "cat's whiskers" of early crystal radios.
• Phosphorus sulfides are important in the synthesis of certain organic substances. For example, P₄S₁₀ and its derivatives are used to replace oxygen in some organic molecules with sulfur.
• Sulfites (containing the anion SO₃²⁻) are salts of sulfurous acid (H₂SO₃), which is generated by dissolving SO₂ in water. Sulfurous acid and its corresponding sulfites are fairly strong reducing agents. Other compounds derived from SO₂ include the pyrosulfite or metabisulfite ion (S₂O₅²⁻).
• Sulfates (containing the anion SO₄²⁻) are salts of sulfuric acid. This acid can react with SO₃ to form pyrosulfuric acid (H₂S₂O₇).
• Thiosulfates (containing the anion S₂O₃²⁻) are sometimes referred to as thiosulfites or hyposulfites ("HYPO"). They are used in photographic fixing as reducing agents. Ammonium thiosulfate is being investigated as a replacement for cyanide in leaching gold.[2]
• Sodium dithionite, Na₂S₂O₄, is the highly reducing dianion derived from hyposulfurous/dithionous acid.
• Sodium dithionate is Na₂S₂O₆.
• Polythionic acids have the formula H₂S_nO₆, where n can range from 3 to 80.
• Peroxymonosulfuric acid (H₂SO₅) is made by the action of SO₃ on concentrated hydrogen peroxide (H₂O₂); and peroxydisulfuric acid (H₂S₂O₈) is made by the action of sulfuric acid (H₂SO₄) on concentrated H₂O₂.
• Sodium polysulfides have the formula Na₂S_x.
• Sulfur hexafluoride (SF₆) is a dense gas at ambient conditions and is used as an unreactive, nontoxic propellant.
• Sulfur nitrides are chain and cyclic compounds containing only sulfur and nitrogen. Tetrasulfur tetranitride (S₄N₄) is an example. Polymeric sulfur nitride, which can be made from tetrasulfur tetranitride, has metallic properties although it does not contain any metal atoms. It also has unusual electrical and optical properties.
• Thiocyanates contain the SCN⁻ group. Oxidation of thiocyanate gives thiocyanogen ((SCN)₂), with the structure NCS-SCN.

Organic sulfur compounds (where R, R', and R" are organic groups such as CH₃):

• Thioethers have the form R-S-R′. These compounds are structurally similar to ethers, which contain O atoms instead of S atoms.
• Sulfonium ions have the formula RR'S-'R," that is, where three groups are attached to the cationic sulfur center. Dimethylsulfoniopropionate (DMSP; (CH₃)₂S⁺CH₂CH₂COO⁻) is a sulfonium ion that is important in the marine organic sulfur cycle.
• Thiols, also known as mercaptans, have the form R-SH. These are the sulfur equivalents of alcohols (which have O atoms instead of S atoms). methyl and ethyl mercaptans are used to scent natural gas so that leaks are readily detectable. Grapefruit mercaptan is responsible for the characteristic scent of grapefruit.
• Thiolate ions have the form R-S^-. These anions are produced by treatment of thiols with a base.
• Sulfoxides have the form R-S(=O)-R′. A common sulfoxide is dimethyl sulfoxide (DMSO).
• Sulfones have the form R-S(=O)₂-R′. A common sulfone is sulfolane C₄H₈SO₂.

Precautions

Carbon disulfide, carbon oxysulfide, hydrogen sulfide, and sulfur dioxide should all be handled with care. Sulfur dioxide is sufficiently safe to be used as a food additive in small amounts, but at high concentrations it reacts with moisture to form sulfurous acid. This acid, in sufficient quantities, may harm biological tissue, including the lungs and eyes. In creatures without lungs, such as insects and plants, it prevents respiration.

Hydrogen sulfide is quite toxic—more toxic than cyanide. Although very pungent at first, it quickly deadens the sense of smell, so potential victims may be unaware of its presence until it is too late.
